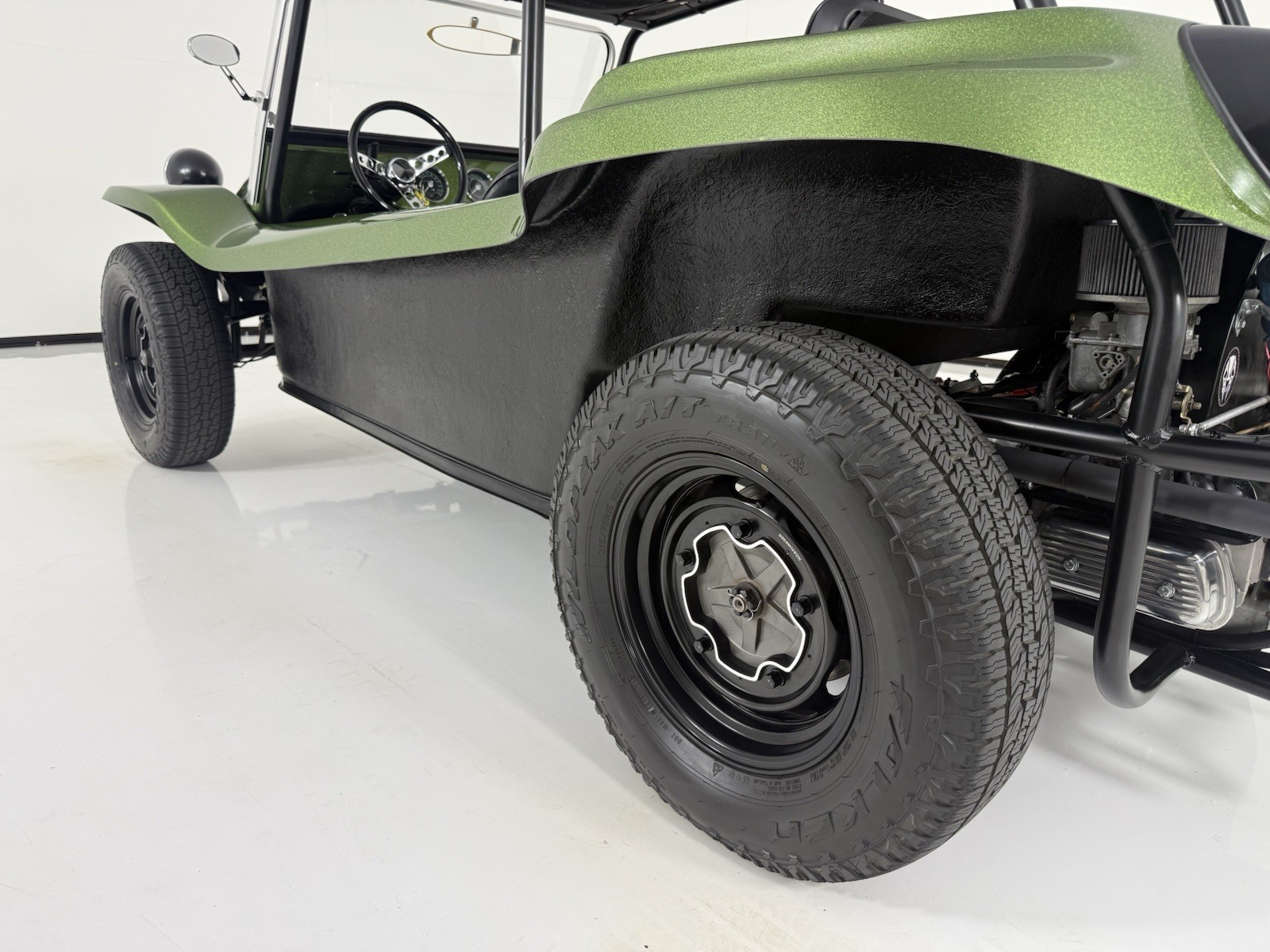

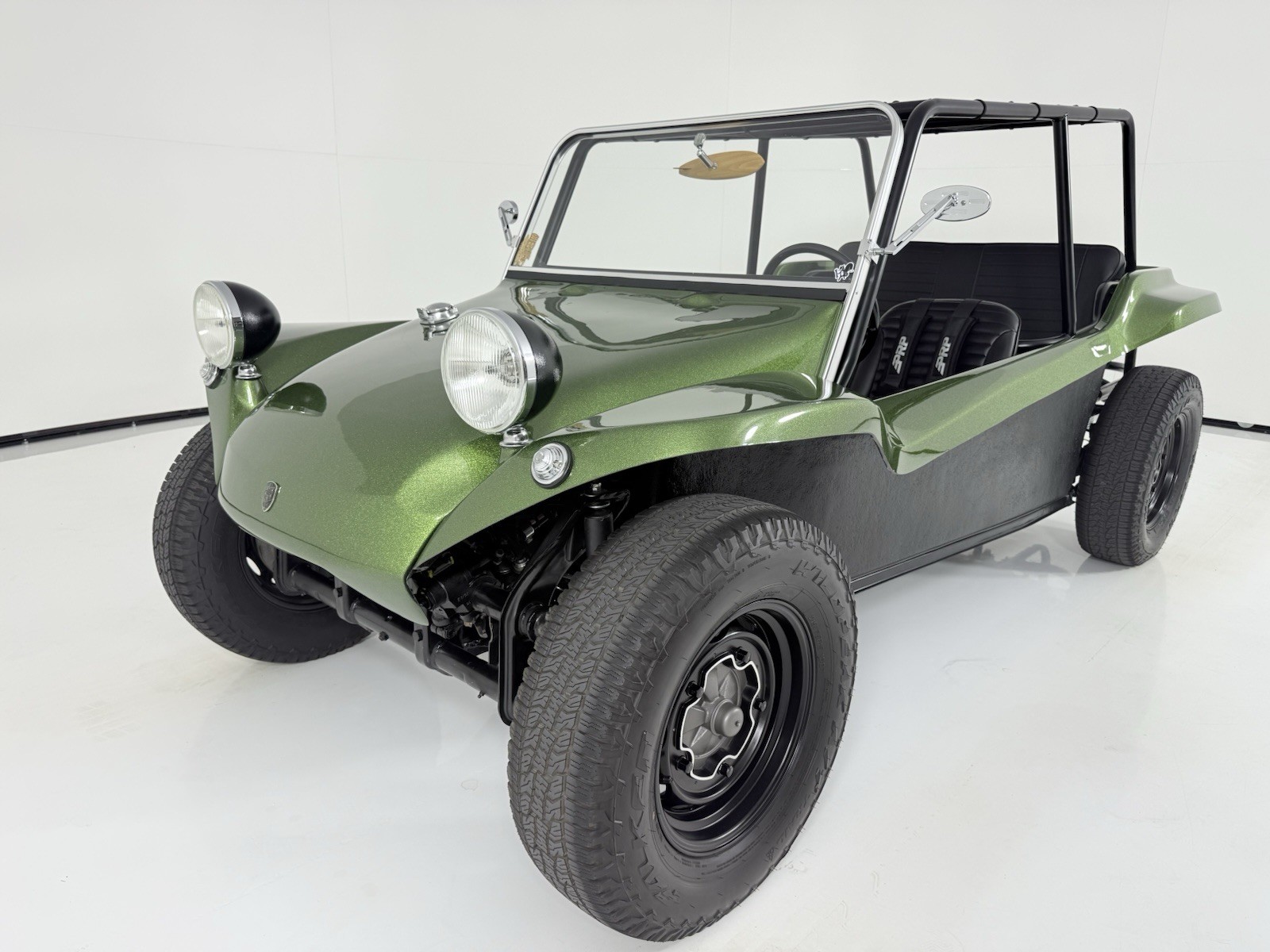

1966 VW Full Size Manx-Style Dune Buggy – Street Legal Turnkey Build
Clean California Title | Current Registration as a 1966 Volkswagen

full-size Manx-style dune buggy built on a full pan (not shortened). Fully rebuilt and sorted with only ~750 miles since completion.

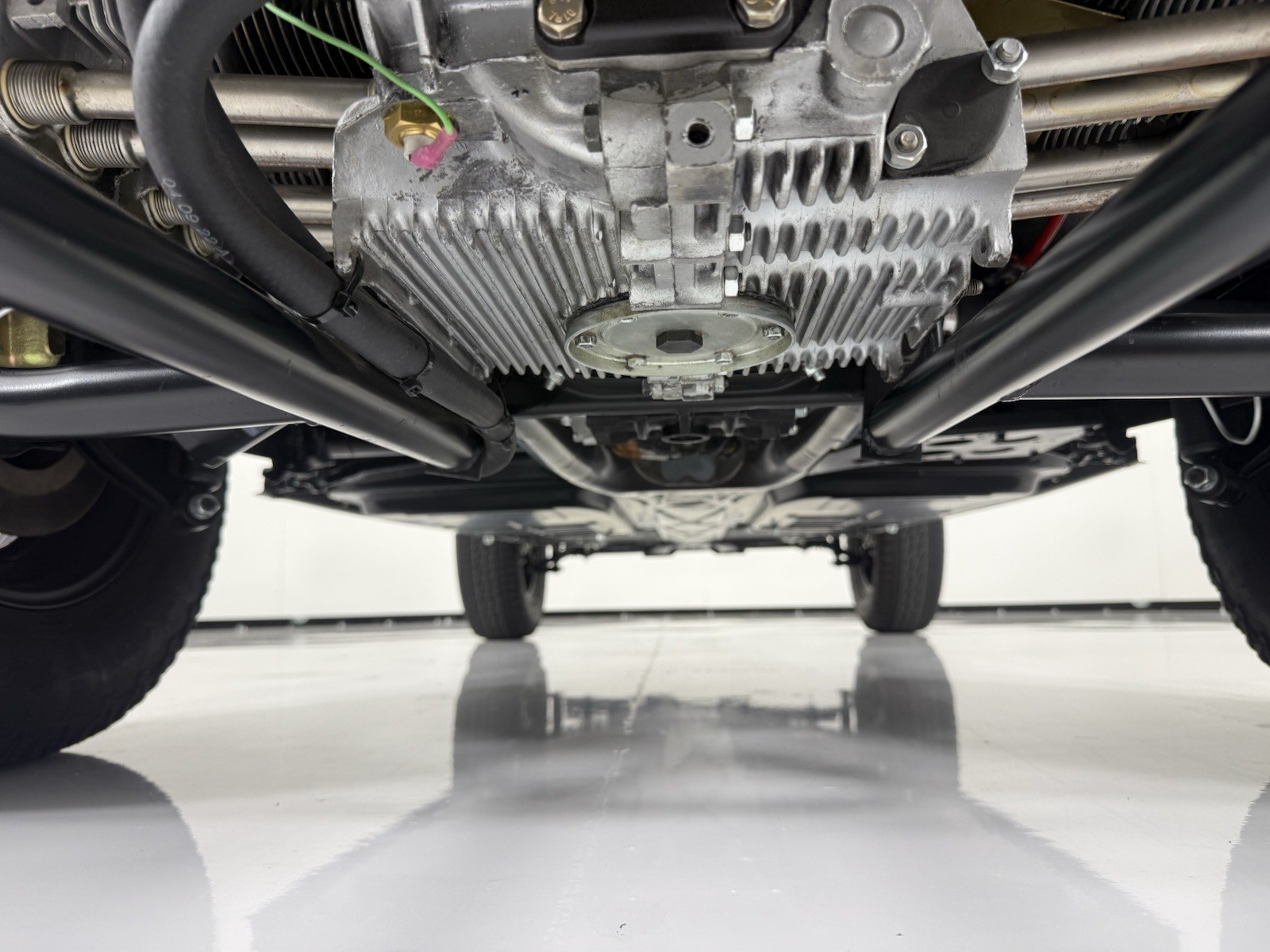

1904cc stroker engine with dual Kadron carburetors and full-flow oil system.

Pro street Swing axle transmission built by Wright Gearbox with heavy-duty internal upgrades.

Front disc brakes and rear disc brakes for strong stopping power.

Full-size VW pan professionally restored by Washburn Metals and powder coated with UV protection.

Manx clone fiberglass body finished in dark moss green metallic with heavy flake. Clear bra protection on entry areas.

Custom powder-coated roll cage tied into pan and rear engine cage.

PRP front bucket seats with matching rear fold-down seat.

Full modern wiring harness installed.
Mobelwagen aluminum wheels.

All new suspension.

1904cc build sheet

AS41 Universal case Profesionally Cleaned, Crack checked and align bored @ .040
New 74mm 4340 Chromoly Crank Balanced
New 4340 Chromoly Flywheel Balanced
Rebuilt Rebushed German Rods Balanced
New Engle 110 Camshaft
New Scat Hardened liteweight Lifters
New AA Performance Straight Cut Cam Gears
New Main Bearings
New Mahle Rod Bearings
New Mahle Cam bearings
New Shaydeck 26mm Oil pump full flow
Rebuilt 041 Big Valve Heads(40×32)
Rebuilt1.1 Rockers
New AA 90.5 mm Piston & Liner Set balanced
New 55 amp Alternator
New Cylinder Tin
New Fan Shroud
8.25.1 compression
